R&D Equipments

Ratnakar offers all Tablet, Granulation, Formulation Lab Pharma Equipment like Tablet Rotary Machine, Blender, RMG/HSMG.

BLENDER
COATING PAN
SPHERONIZER
MINI TABLET PRESS

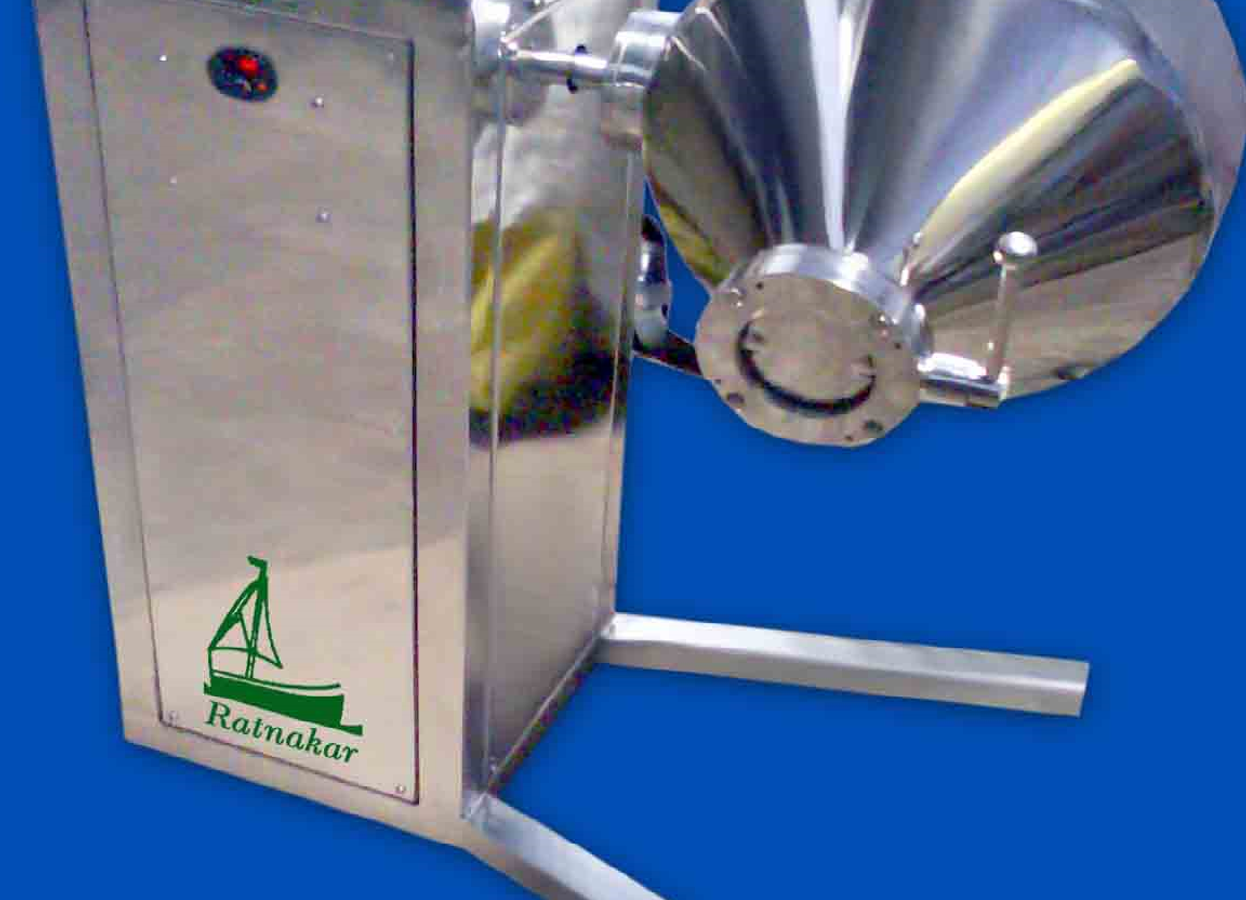

Blender

Ratnakar offers Octagonal, Double Cone, V, Cage, and Conta Blender types of diverse GMP blenders ranging from 50 to 5000 liters. Optional features include bins, trolleys, and so on. VFD/PLC is also available upon request. We also add safety railings to make cleaning easier.

Additional features: Bins of required size will be available. We offer charging through vacuum special design process system. FLP Motor can be offered. AC Drive, PLC also offered.

Batch Size Capacity: 250, 500, 660, 750, 1000, 1200, 2500 liters and above are available.

Application:
  • For Pharmaceuticals and neutraceuticals for blending of dry granules or powder mixer
  • Ease in cleaning of bowl process

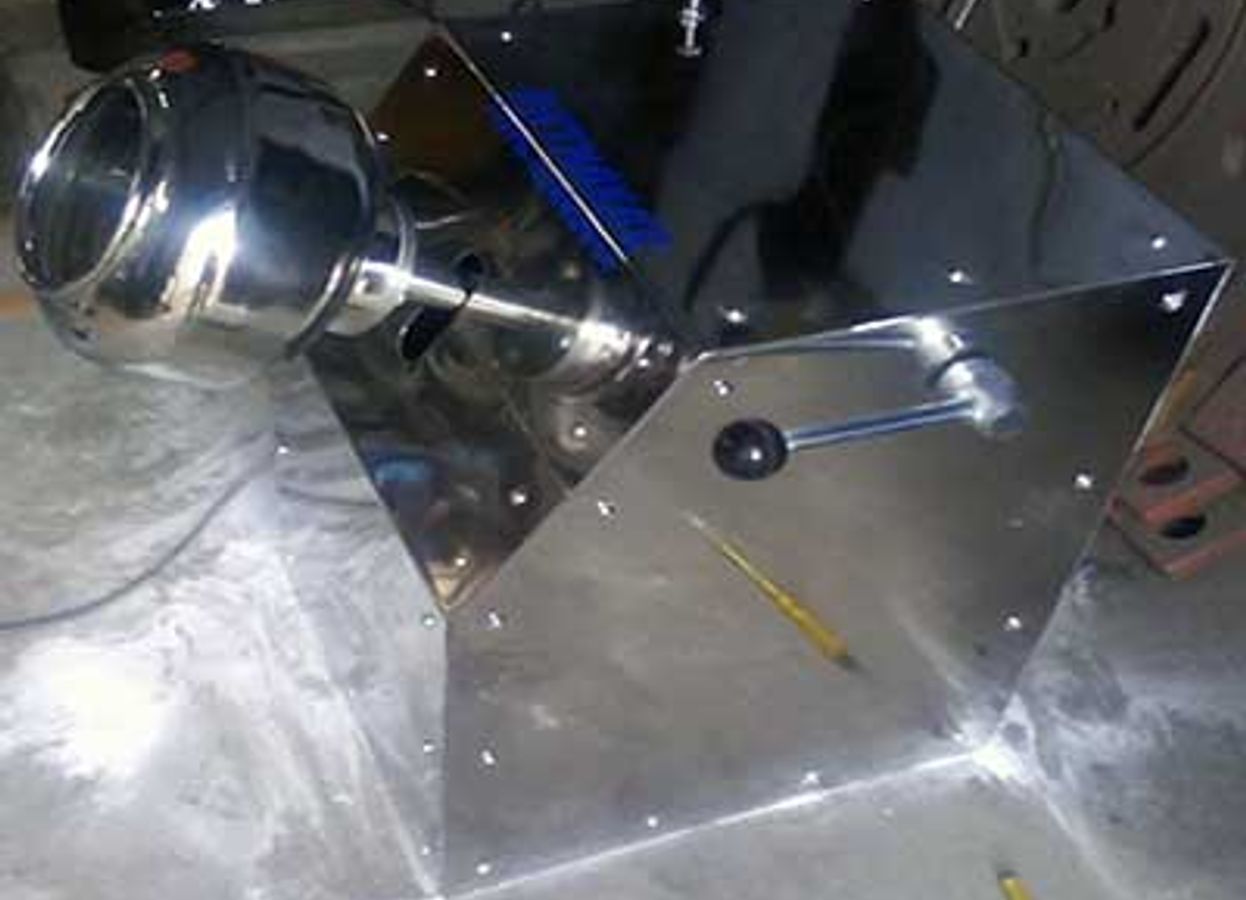

Coating Pan

Auto Coater/Conventional Coating pan available into various sizes from 12 inches up to 72 inches pan size. We also offer solution preparation tank (FLP/Non FLP Model), Spraying System etc.

Ratnakar Coating Pan Machine

Ratnakar Auto Coater and Conventional Coating Pan machine will be offered as per client requirement.

The machine is being used for sugar and film coating into various sectors like pharmaceuticals, neutralceuticals and allied industries. It’s available with Separate Hot Air Blower with Trolley provided.

Our Coating pan sizes available from 36, 48, 60 and 72 Inches. If special purpose R and D or bigger size tailor made requirement can be available on demand.

Heating mode: Electric Heating mode will be provided.

CFM: Higher CFM up to 400 CFM Cap. Will be provided.

AC drive will be provided for getting required RPM for coating pan motion for sugar or film coating.

Additional features: Baffels, Spray Gun Stand, Solution preparation tank etc. will be provided as per buyers requirement.

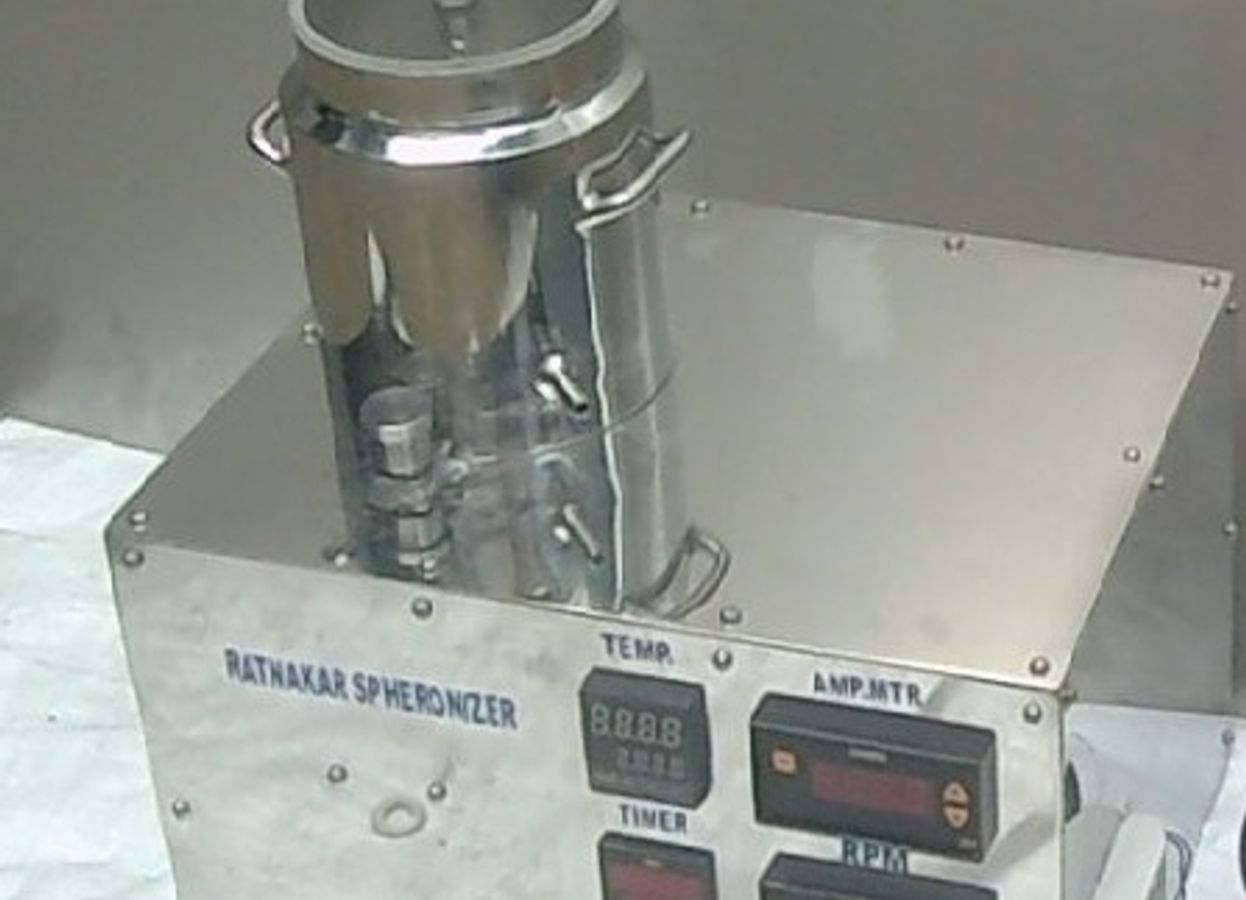

Spheronizer

The Ratnakar Extruder and Spheronizer are two independent units integrated into a single machine, operating separately.

  • The process begins in the extrusion cylinder, where the material is first processed.
  • The extruded material is then transferred to the spheronizer, which shapes it into uniform spheres.
  • The spheronizer is equipped with a chiller unit to ensure precise control over the process.
  • It can produce spheres with diameters ranging from 0.4 mm to 8 mm.

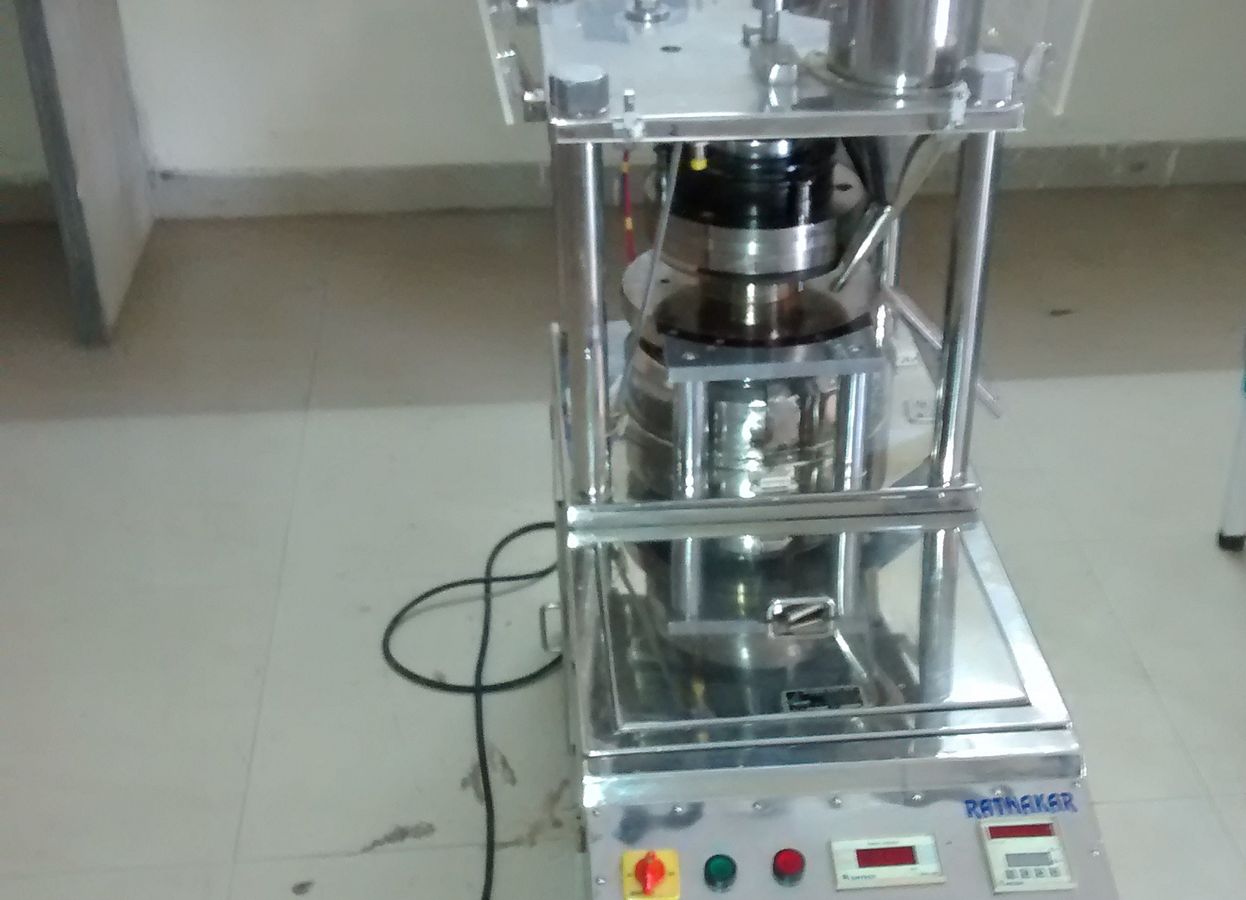

Mini Tablet Press

  • Number of Stations: 6 to 12 stations
  • Type: Single Rotary
  • Optional Features: VFD, PLC

We sell diverse range of Pharma process equipments like Rotary, Drying, Granulation, Mixing & Blending, Coating and Allied machinaries.
